Product Description

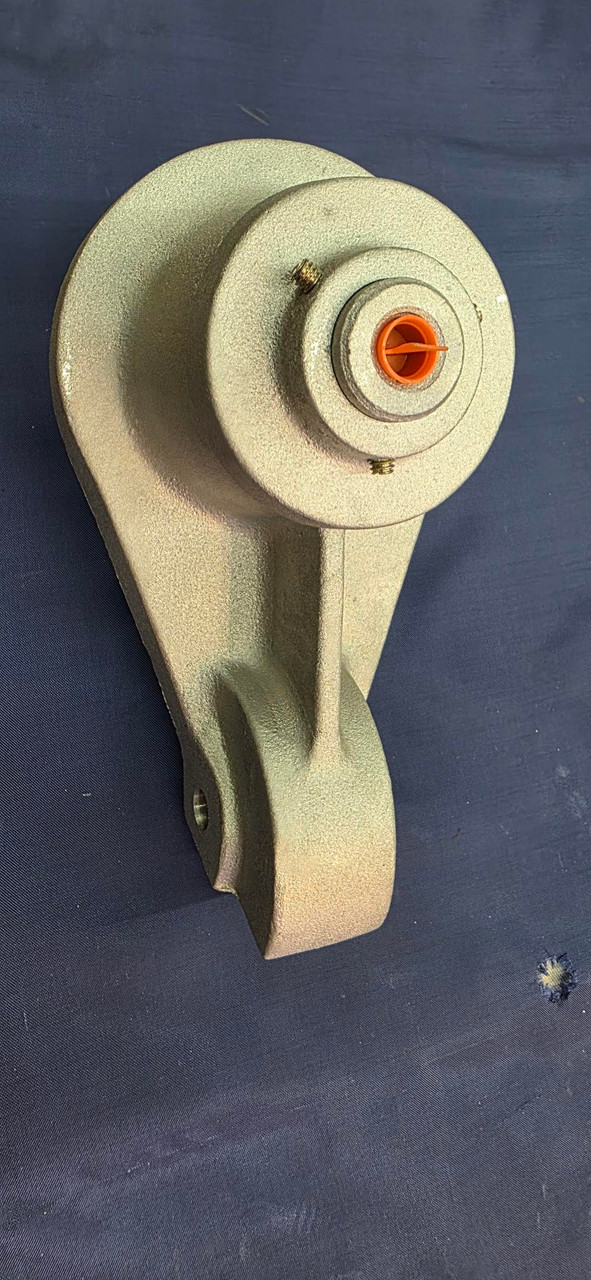

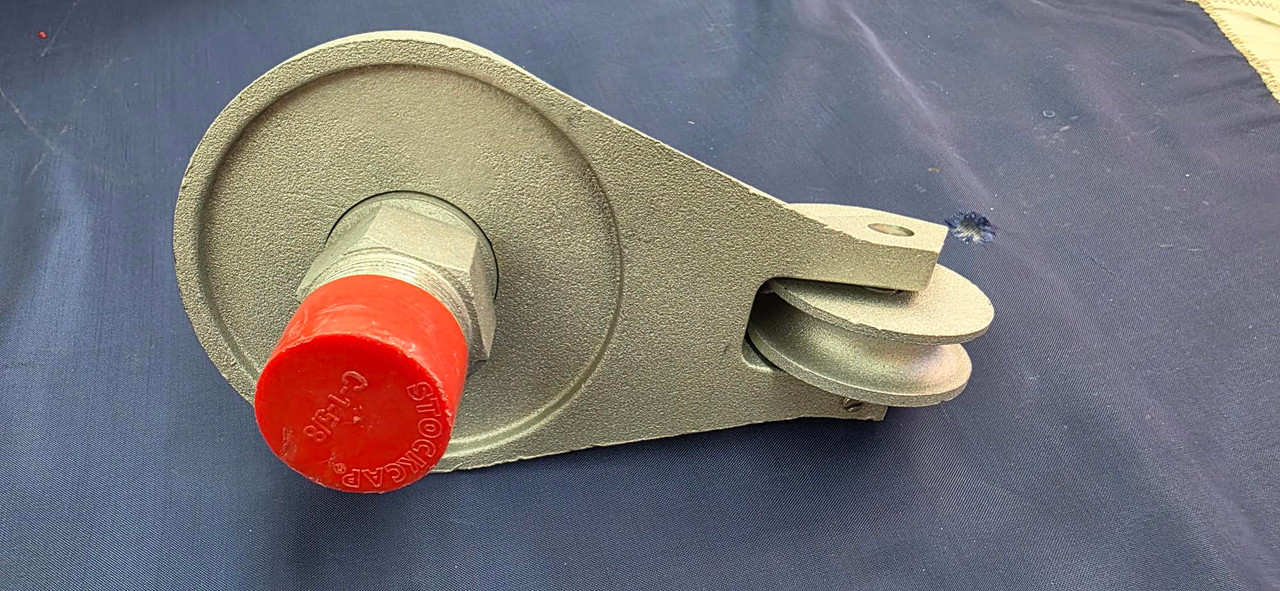

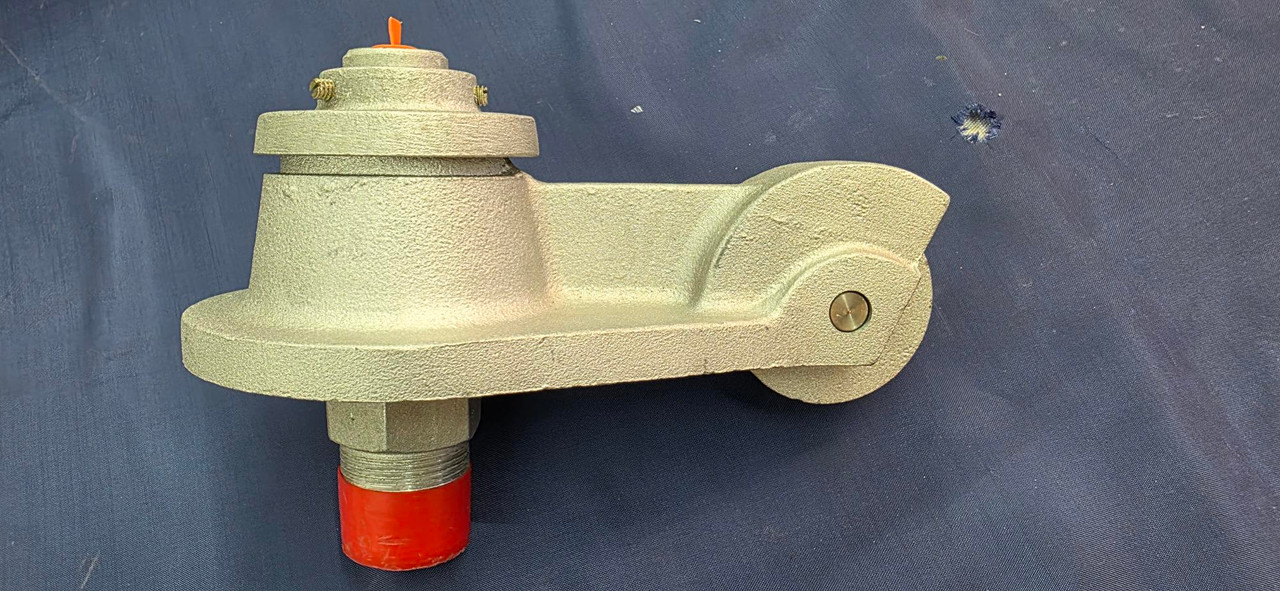

Truck External HDT-1 Series, Threaded Revolving
- For external halyard poles
- Threaded
- Revolving
- Single pulley
Construction: cast aluminum
Pulley: 2.5" outside diameter cast aluminum on .5" stainless steel axle
Max halyard(rope) diameter: 3/8"
Truck spindle: 1.25" NPT threading
Flagpole: up to 5.5" outside top diameter pole with female fitting installed
Ornaments: accepts spindle threading of .5"-13NC. Secured by 1 stainless steel set screw (.25"-20NC)
Movement: utilizes enclosed stainless steel bearings and raceway
overall width of truck from end to end is 9.5 inches
7 inches tall from bottom of spindle to top of truck
pulley size wheel is 3 inches
from center of spindle to end of pulley is 7 inches
