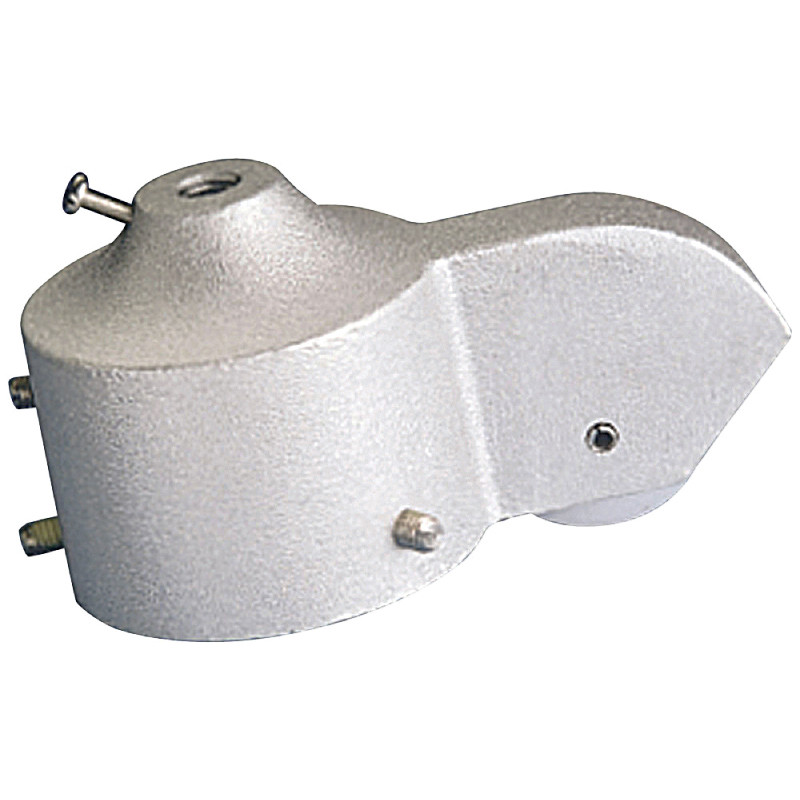

Cast aluminum construction for use on rope style internal halyard flagpoles.
A small pulley assembly is added to the inside of a standard outrigger style truck to allow the halyard to feed from inside the flagpole.
The pulley assembly has a 1-7/16” outside diameter cast nylon pulley on a 1/4” stainless steel axle and is held in place inside the truck by a 5/16” stainless steel set screw.
The truck has a 2” outside diameter cast nylon pulley on a 1/4” stainless steel axle and is designed to slip over the top of the flagpole and be secured with three 5/16” stainless steel set screws.
The top of the truck will accept an ornament with 1/2” threading as standard but can be supplied with other sizes of threading.
The ornament is held in place by a size 10-32 stainless steel pan head screw. Maximum rope diameter is 5/16”.
