Product Description

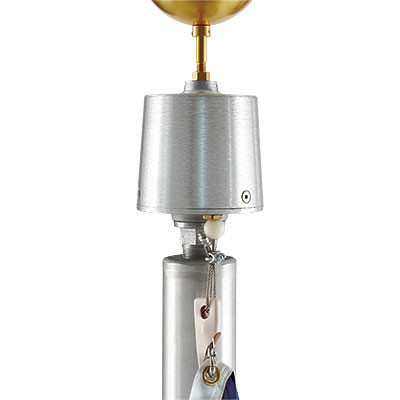

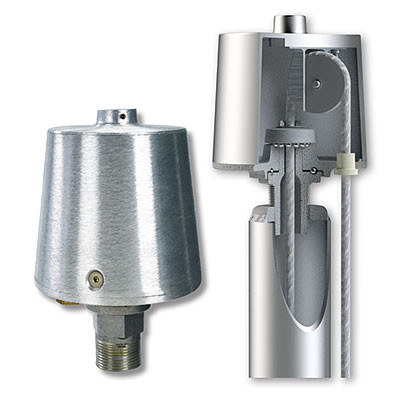

Internal Flagpole Cable Based Revolving Trucks - the most widely used internal truck style in the industry.
Constructed from heavy cast aluminum they are supplied machined bronze cable exit bushing for use on the steel cable based systems which significantly increases truck life by providing protection from wear exerted by the stainless steel cable.
The top is tapped 1/2" - 13NC for application of a Ball or Eagle.
Upon request the factory can tap the top out to 5/8" - 11NC.
NOTE: The spindle is for maximum size 1/4" rope or wire. Do NOT use this particular part if you are using 5/16" rope. 5/16" is thicker than 1/4" rope
SMALL - for max top diameter or 3"- This size will only be used for flagpole that have rope/ cam cleat poles.
MEDIUM - for max top diameter of 4" - for wire only poles
LARGE - for max top diameter of 5" for wire only poles
EXTRA LARGE - for max top diameter of 7-1/2" for wire only poles
