Product Description

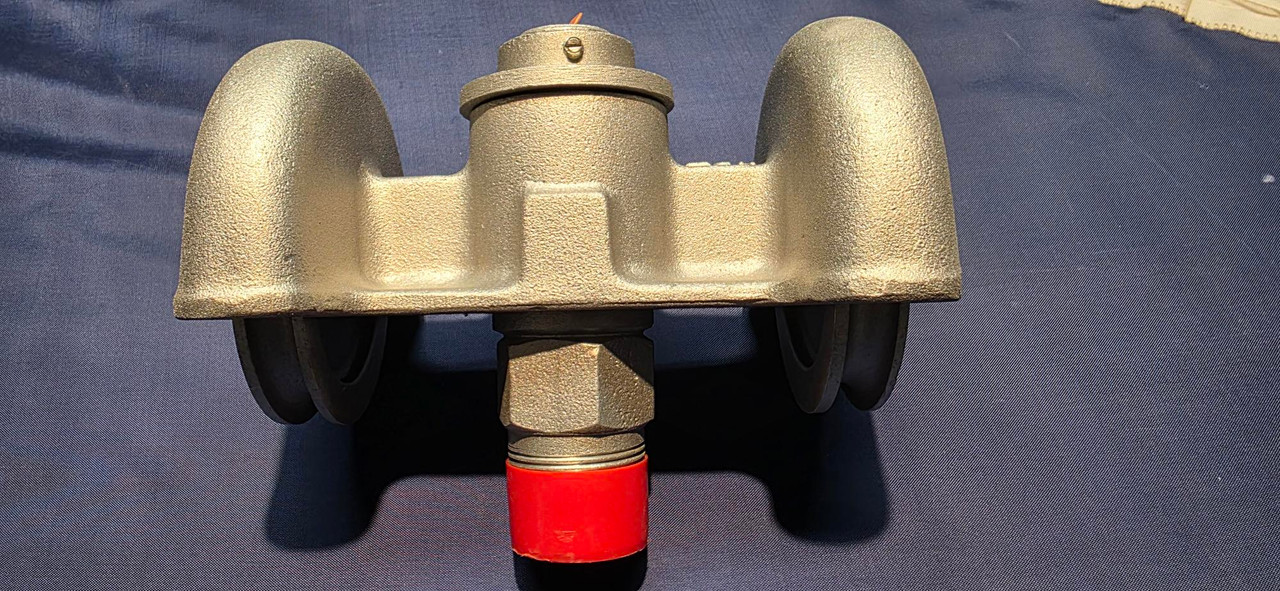

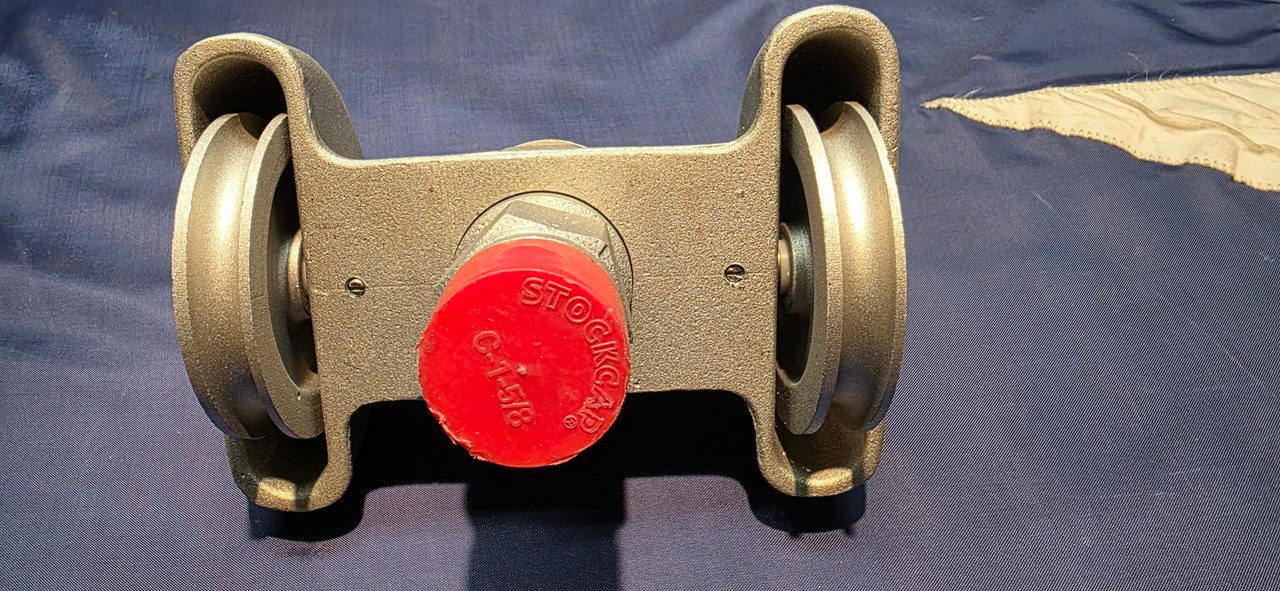

Truck External HDT-2 Series, Threaded Revolving
- For external halyard poles
- Threaded
- Revolving
- Double pulley
Construction: cast aluminum
Pulley: 3-3/4" outside diameter cast aluminum on 1/2" stainless steel axles
Max halyard(rope) diameter: 3/8"
Truck spindle: 1.25" NPT threading
Flagpole: up to 5.5" outside top diameter pole with female fitting installed
Ornaments: accepts spindle threading of .5"-13NC. Secured by 1 stainless steel set screw (.25"-20NC)
Movement: utilizes enclosed stainless steel bearings and raceway
This Pulley is typically for flagpole 50ft or taller
This item is approx 6.5 inches tall from bottom of threads to top of pulley
the pulley wheels are 4 inches in diameter
Overall Width of the heavy duty truck system is 7.5 inches
This item also can come in white, bronze or black powder coat- please call for pricing
