Product Description
American StarGazer - External Rope Halyard - Single Revolving Downlight
Note this flagpole light will be for flagpole with Max top diameter of 3.5" So please make sure you measure the top of the flagpole first to make sure it will be adequate.
The top of the flagpole will need to be threaded with 1 1/4"inch NPT.
The light wires will run from the top of the flagpole - down into the flagpole itself toward the ground. Your installer will need to drill a hole at the bottom of the flagpole around ground level and feed the wires out to the ground power supply.
**StarGazer requires a remote 24vDC output power supply

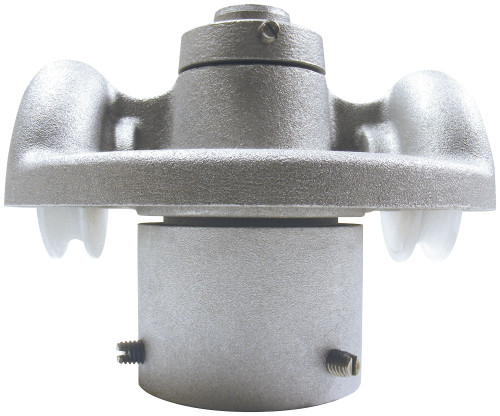

• External Halyard Truck, LED dome fixture, and factory installed low voltage power cord shipped as a completely assembled unit.
• Standard LED dome top provided in a Metallic Gold color
• Truck finish is SATIN.
• Downlight designed to accommodate remote mounted low voltage power supply (SOLD SEPARATELY) or is Solar Capable as standard.
• Full cutoff optics.
• LED Array and 60 foot low voltage cable length- UL Listed.
•3000K bulbs are IDA Dark Sky Approved
• Energy efficient and long-life LED’s rated for 50,000 hours.
Finish Option
SAT = Satin
Performance
Input Watts / Amps (LM-79 reported): 5.5 W/0.20 A
Input Voltage: 24V DC
Color Accuracy (CRI): 90+
Temperature Range: -40°F to 149°F
LED Tape IP Rating: IP67
Power Supply Line Voltage to Low Voltage
For use with ALL American StarGazer Dome Down Lights
• No Load Technology
• Soft Start Feature
• Constant Voltage Output
• ETL Listed For Outdoor Applications
• Overload/Short Circuit/Over-Voltage/Thermal Protection
• Input Voltage: 120-277VAC
• Output Voltage: 24VDC
• Max Watts: 40 Watts
• Power Supply Options Will Power Up To Three (3) Fixtures
NEMA 3R Above Ground
Dimensions: 2″ W x 3.4″ L x 9.3″ H
Weight: 2.5 LBS

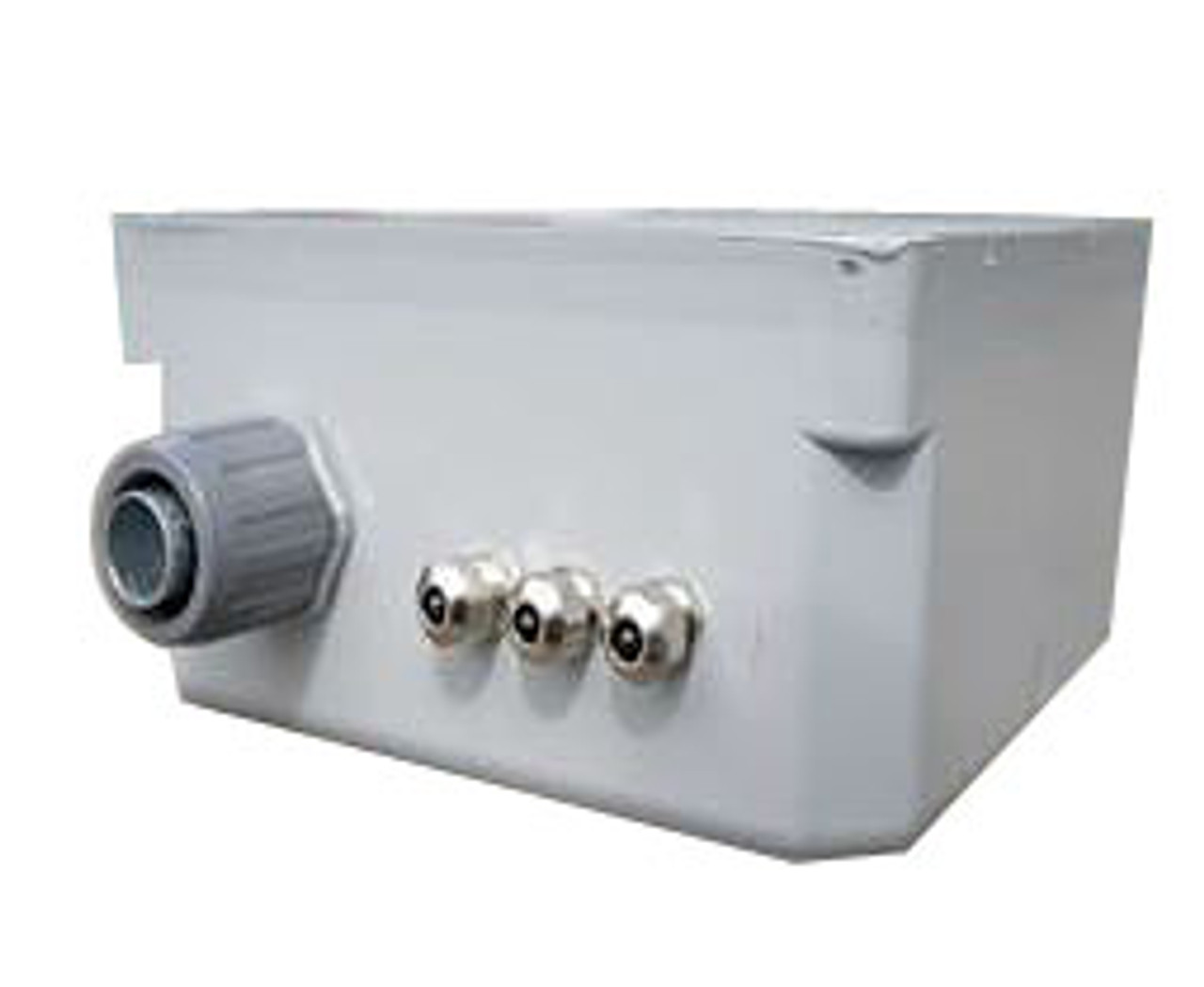

Direct Burial
Dimensions: 9″ W x 9″ L x 5″ H
Weight: 5 LBS
